Key Features:

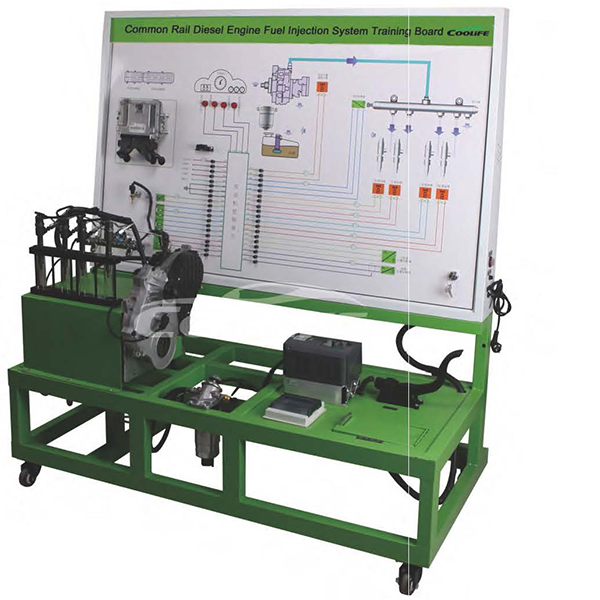

Electronic Control System Demonstration: Utilizes a real and operational diesel engine electronic control system to showcase the detailed operation of fuel injection, enhancing the educational experience.
Educational Wiring Diagrams: Features comprehensive wiring and principal diagrams on the panel, aiding in the understanding of the electronic fuel injection system's electrical connections and functions.
Diagnostic Access: Equipped with checking connectors for diagnosing electrical signals such as resistance, voltage, current, and signal pathways, enabling effective troubleshooting and learning.
Practical Operation Insights: Includes a diagnosis socket for connecting automotive scanners, facilitating the reading and clearing of fault codes and accessing data streams from the electronic fuel injection system.
Interactive Learning Environment: The design allows for the illustration of the electronic control system's components and operation, including fuel pump operation, injector functionality, and fuel pressure control.
Safety and Mobility: Mounted on a sturdy, movable stand with self-locking wheels, ensuring safe and convenient use across various educational settings.
Advanced Fault Simulation: Incorporates an intelligent fault setting and appraisal system controlled via a mobile app, enhancing diagnostic skills and problem-solving capabilities.
Comprehensive Learning Tool: Ideal for technical institutes and training centers, offering in-depth insights into modern diesel fuel injection technology and electronic control systems.
Diesel engine electronic control system components, wiring diagram panel, engine control module, diagnosis socket, checking connectors, ignition switch, fuel pressure meter, multi-point injection system components, battery, relay, fuse box, and mounting stand.
Dimensions: 1600 mm (L) x 700 mm (W) x 1700 mm (H)
External power supply: A.C. 220V ± 10% 50Hz
Operating voltage: 12V DC
Fuel pressure meter range: 0-10 kg/psi
