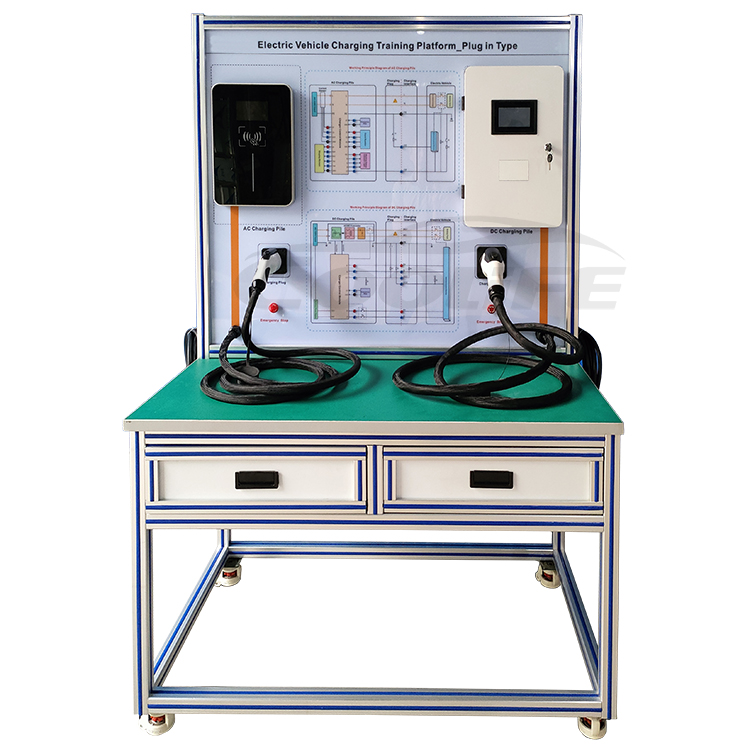

EVB10 - Electric Vehicle Charging Training Platform_Plug-In

Product Overview:

The Electric Vehicle Charging Training Platform_Plug-In is specifically designed to simulate the charging process of electric vehicles, providing a detailed demonstration and analysis of the key technologies and data involved in the charging process.

Key Features:

• Capable of extracting and analyzing key signals during the charging process, such as sensor signals, voltage, and current sampling signals.

• Users can observe signal amplitude, frequency characteristics, and their changes intuitively using an oscilloscope or multimeter.

• Equipped with a comprehensive protection module to ensure safety during the training process.

Specifications:

• Dimensions: 980mm x 660mm x 1400mm.

• Input Voltage: Single phase 220±10Vac, Rated Current: 16A, Rated Input Power: 3.6KW.

• Maximum Allowed Output Voltage: 600V, Voltage Error: <1%, Current Error: <5%, Efficiency: ≥ 85% under 50-100% load.

Components:

• The training platform includes key components like a three-phase AC charging pile, onboard charger, CC/CP handshake module, and protection module, demonstrating the rectification principle and charging signal interaction during the charging process.

Educational Objectives:

• Enable students to understand the composition and charging principles of electric vehicle charging systems.

• Learn the current control process and charging control strategy of the charging system.

• Understand the signal interaction and connection process during charging, enhancing practical operation skills in electric vehicle charging technology.
