EVC01 - Electric Vehicle Drivetrain Assembly and Disassembly Training Bench

Product Overview

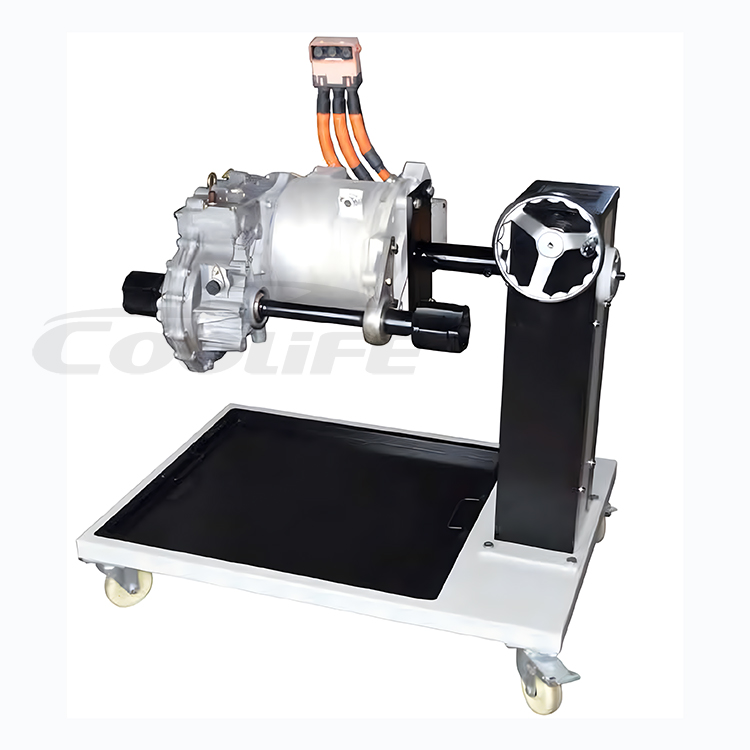

This training device is specifically designed for the teaching and practical training of electric vehicle transmission drivetrains, integrating a transmission drivetrain and a special flip rack. The device allows trainees to observe and operate the transmission drivetrain at a 360-degree rotation, supporting disassembly, debugging, and inspection from multiple angles, making it highly suitable for technical education and vocational training.

Functional Features

1. The transmission drivetrain is mounted on a 360-degree rotatable flip stand, supporting locking at any angle, facilitating teaching and practical training from multiple perspectives.

2. The design considers oil spill collection during the training process, equipped with an oil collection tray at the bottom to maintain a clean working environment.

3. The stand is mounted on a movable support with self-locking casters, making it easy to move in different teaching or training environments.

4. The device meets the full-process training needs of disassembling, reassembling, debugging, and inspecting the transmission drivetrain.

Specifications

• Dimensions: 900mm x 700mm x 1200mm (Length x Width x Height)

• Operating temperature range: -20°C to 60°C

Product Composition

• Transmission drivetrain

• Flip stand

• Oil collection tray

• Movable support

Educational Objectives

1. Learn and understand the structure and working principles of the transmission drivetrain.

2. Master the maintenance methods and techniques for the transmission drivetrain.

3. Practice the disassembly, adjustment, and original component testing of the transmission drivetrain, enhancing practical operational skills.

4. Enhance trainees' comprehensive abilities in maintaining and repairing electric vehicle transmission drivetrains through practical training.
