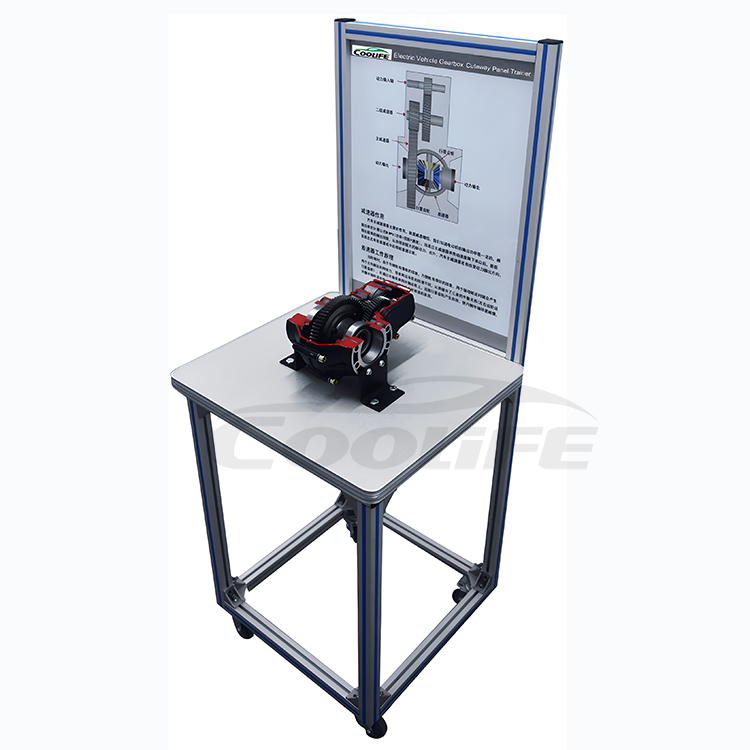

EVC04 - Electric Vehicle Transmission Gearbox Drive Axle Dissection Teaching Stand

Product OverviewThis product is a set of electric vehicle transmission gearbox teaching tools specifically designed for education and training. It uses an original electric vehicle transmission gearbox assembly, which has been professionally dissected and color-coded, to intuitively display the internal structure and working principles of the gearbox. This teaching tool comes with a movable and lockable box-type stand, making it convenient for use in various teaching environments.

Functional Features

1. Utilizes an original electric vehicle transmission gearbox assembly, dissected partially and marked with different colors, to vividly showcase the internal component structure and working principles.

2. Detailed demonstration of the working principles of the electric vehicle transmission gearbox, including the relative positions of the components and their shifting principles.

3. The drive axle dissection view clearly presents the internal structure of the drive axle, enhancing the learning experience.

Specifications

• Dimensions: 800mm x 600mm x 1400mm (Length x Width x Height)

• Operating Temperature Range: -20°C to 60°C

Product Composition

1. Original electric vehicle transmission gearbox assembly.

2. Movable and lockable box-type stand.

Educational Objectives

1. Enable students to understand and recognize the overall composition of the drive axle, including peripheral auxiliary components.

2. Delve into the working principles of the drive axle and gearbox, understanding their internal structures and shifting principles.

3. Through physical display and operation, improve students' understanding and practical skills in electric vehicle transmission gearbox technology.
